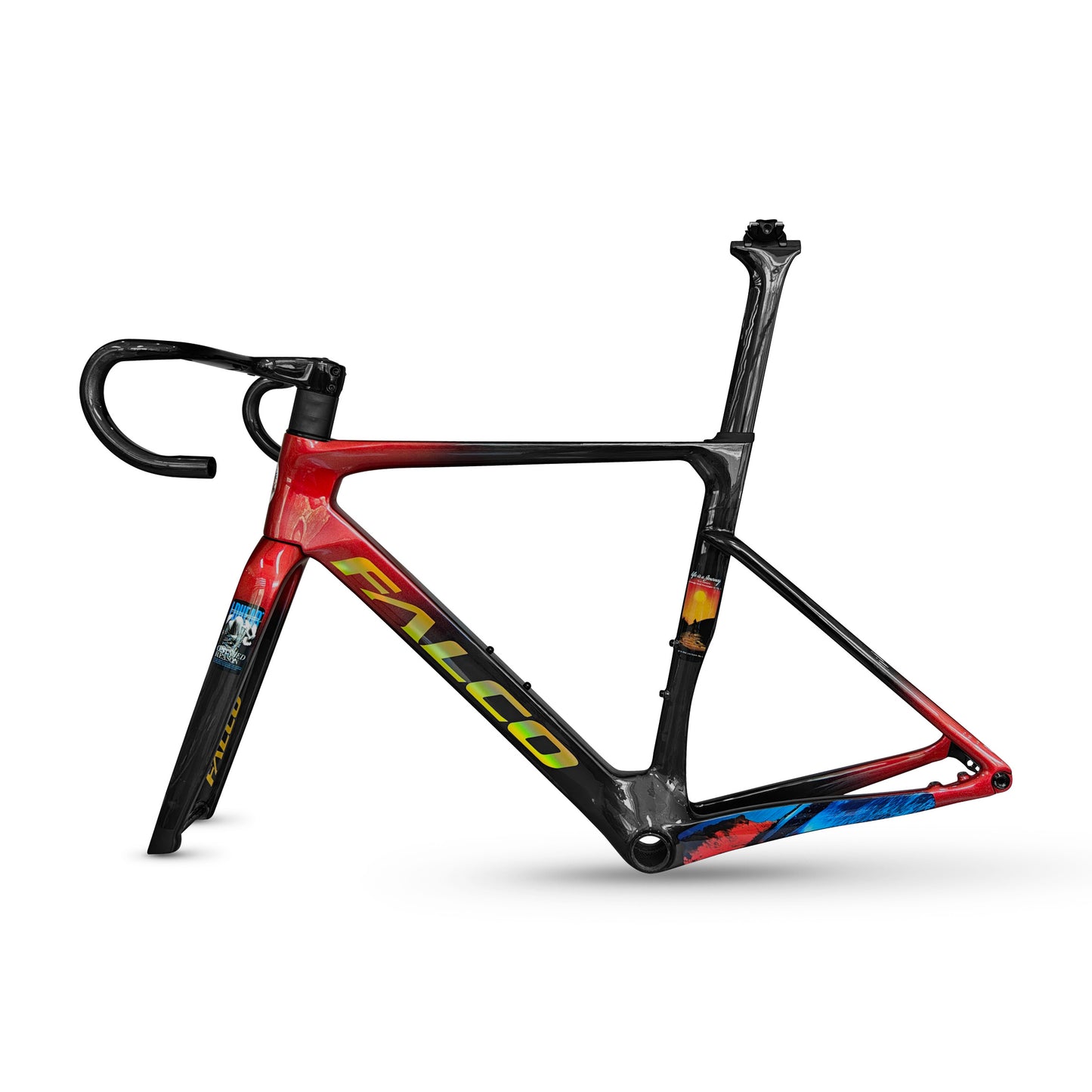

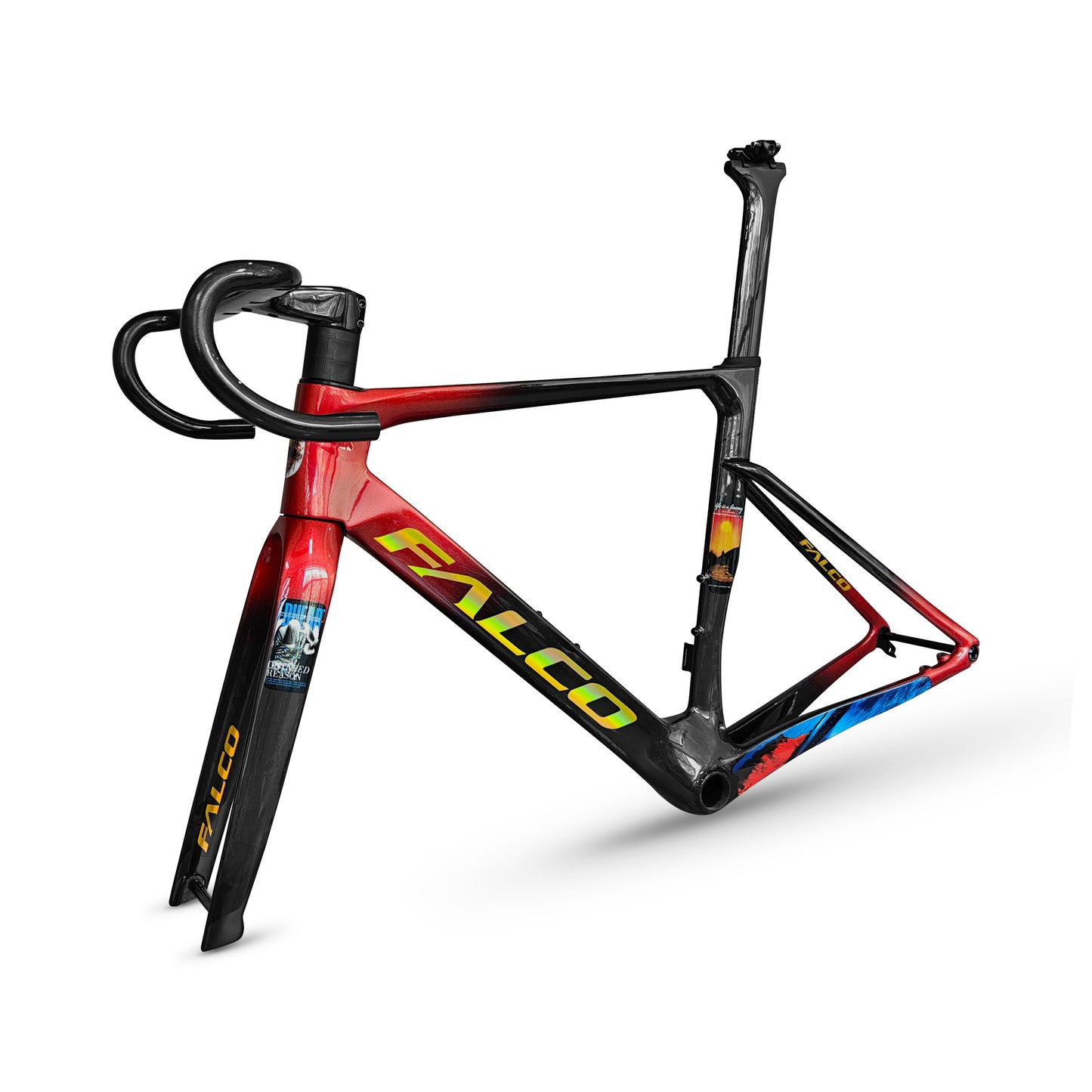

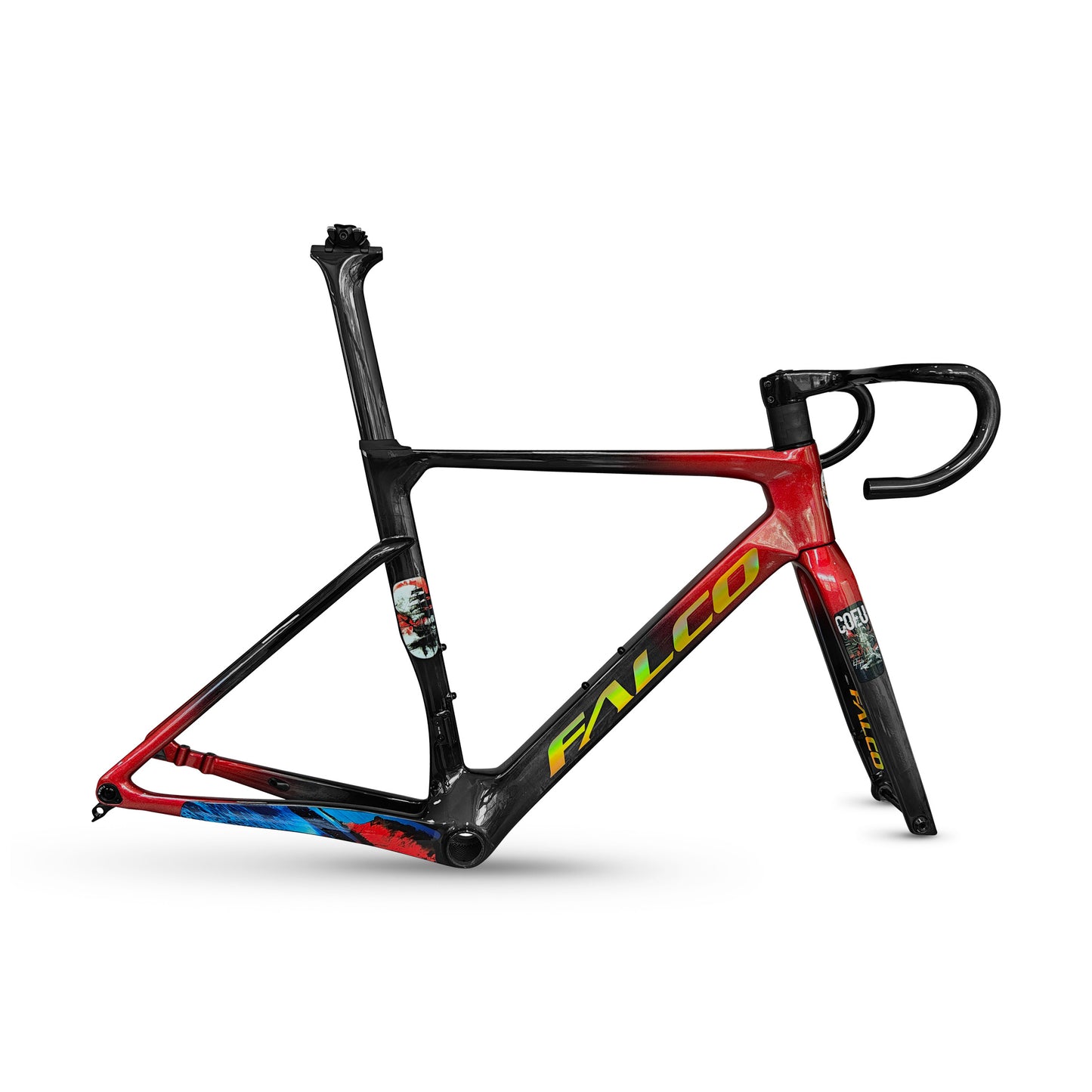

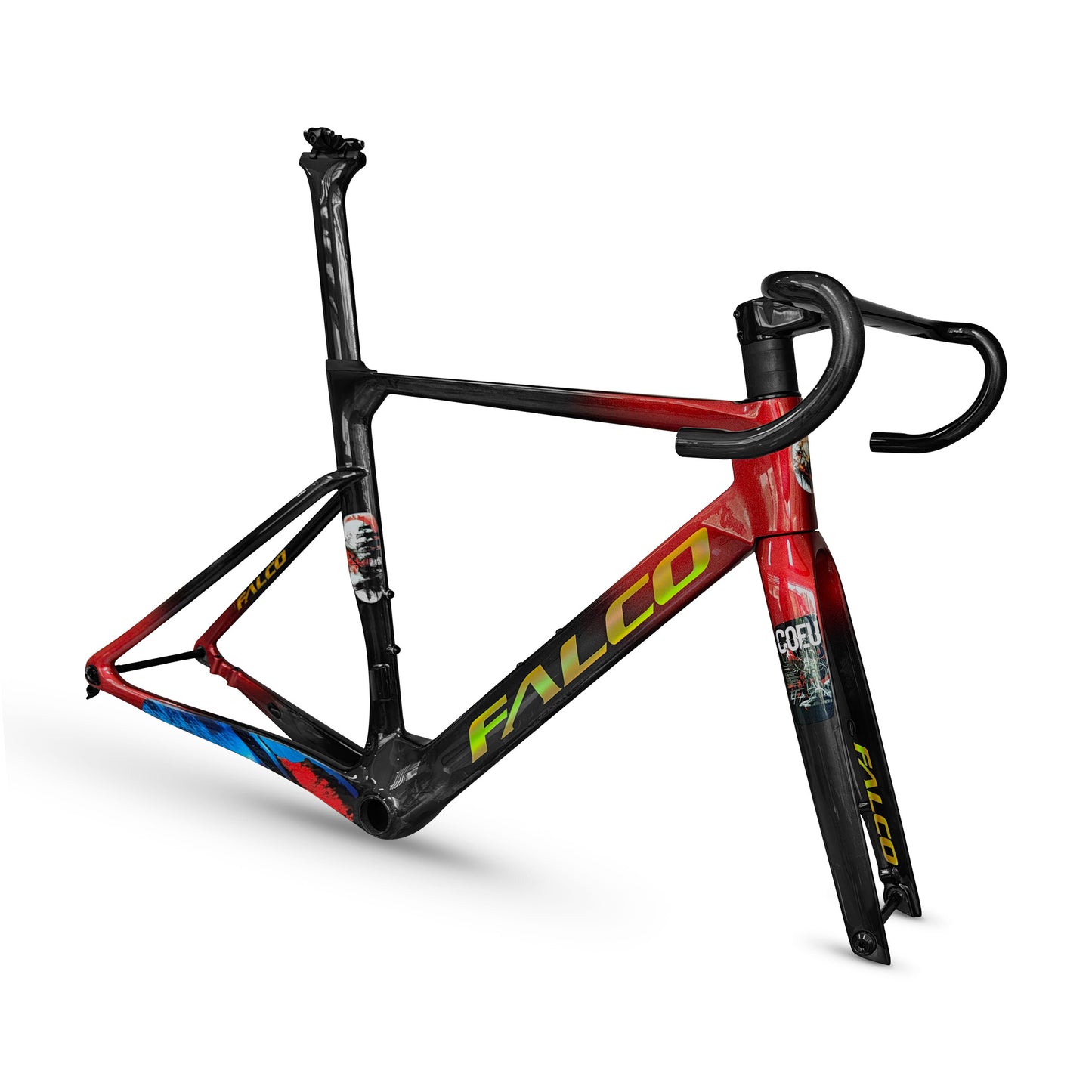

RD28 Ultralight Disc Aero Road Frameset

UCI Approved: Yes

Frameset: RD28 Frame+Fork+Handlebar+Seatpost

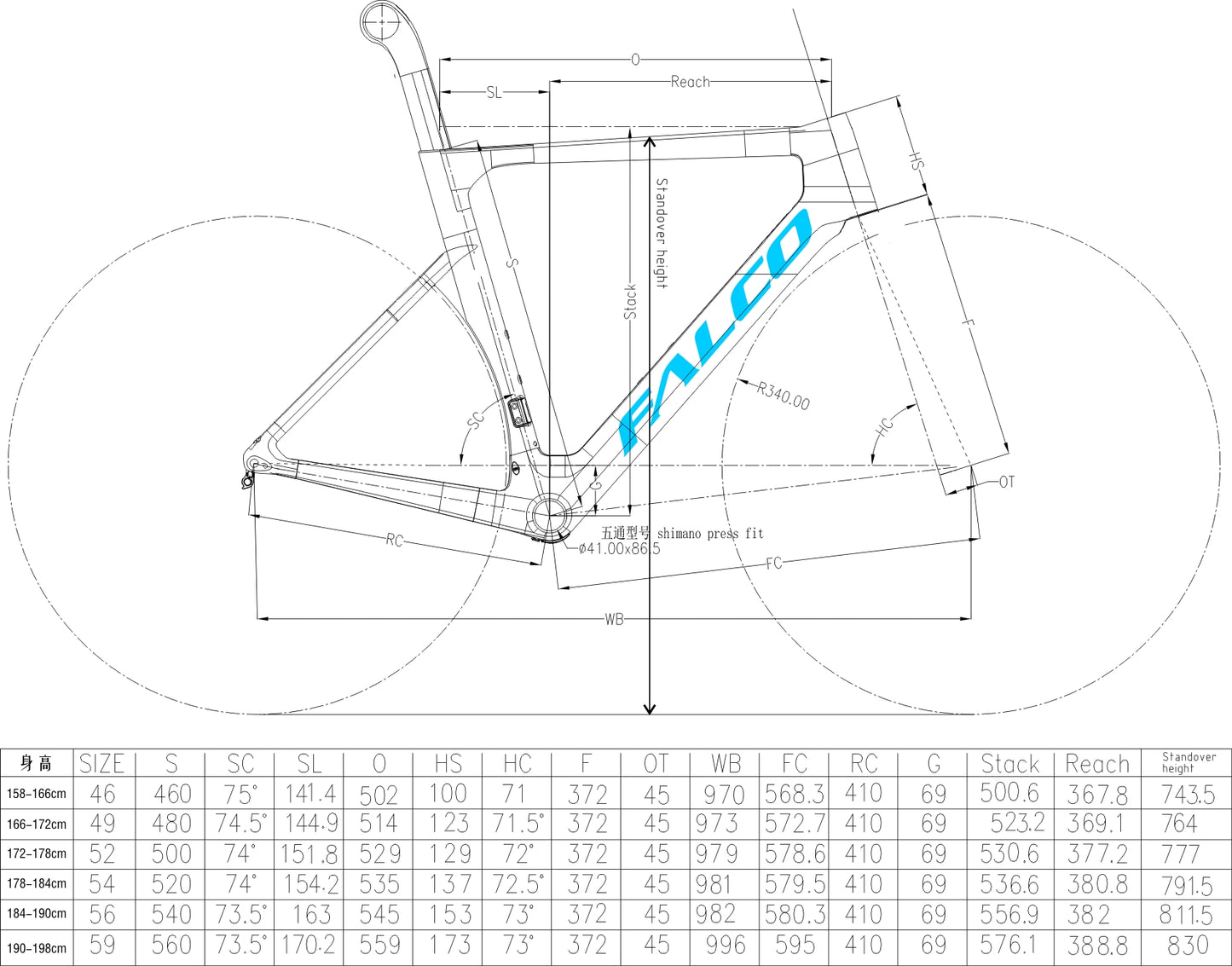

Frame Sizes:46cm,49cm,52cm,54cm,56cm,59cm

Handlebar Size:380mm,400mm,420mm,440mm

Stem Size: 90mm,100mm,110mm,120mm

Color: Red-Black/Blue-Black/White-Black/Custom Painting

Material: Toray carbon fiber T800+T1100

Groupset Compatible: Machine and Di2 compatible

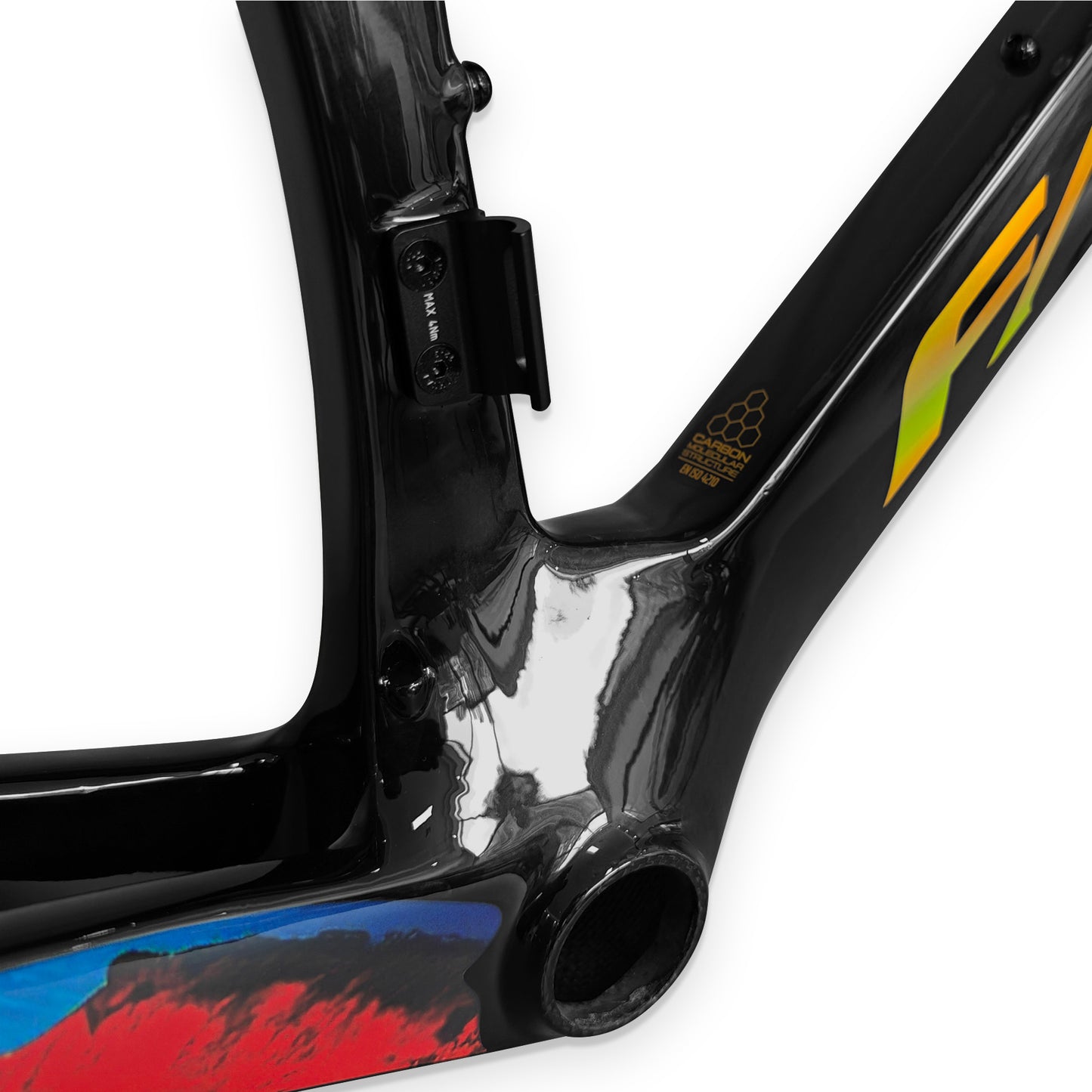

BB: BB86

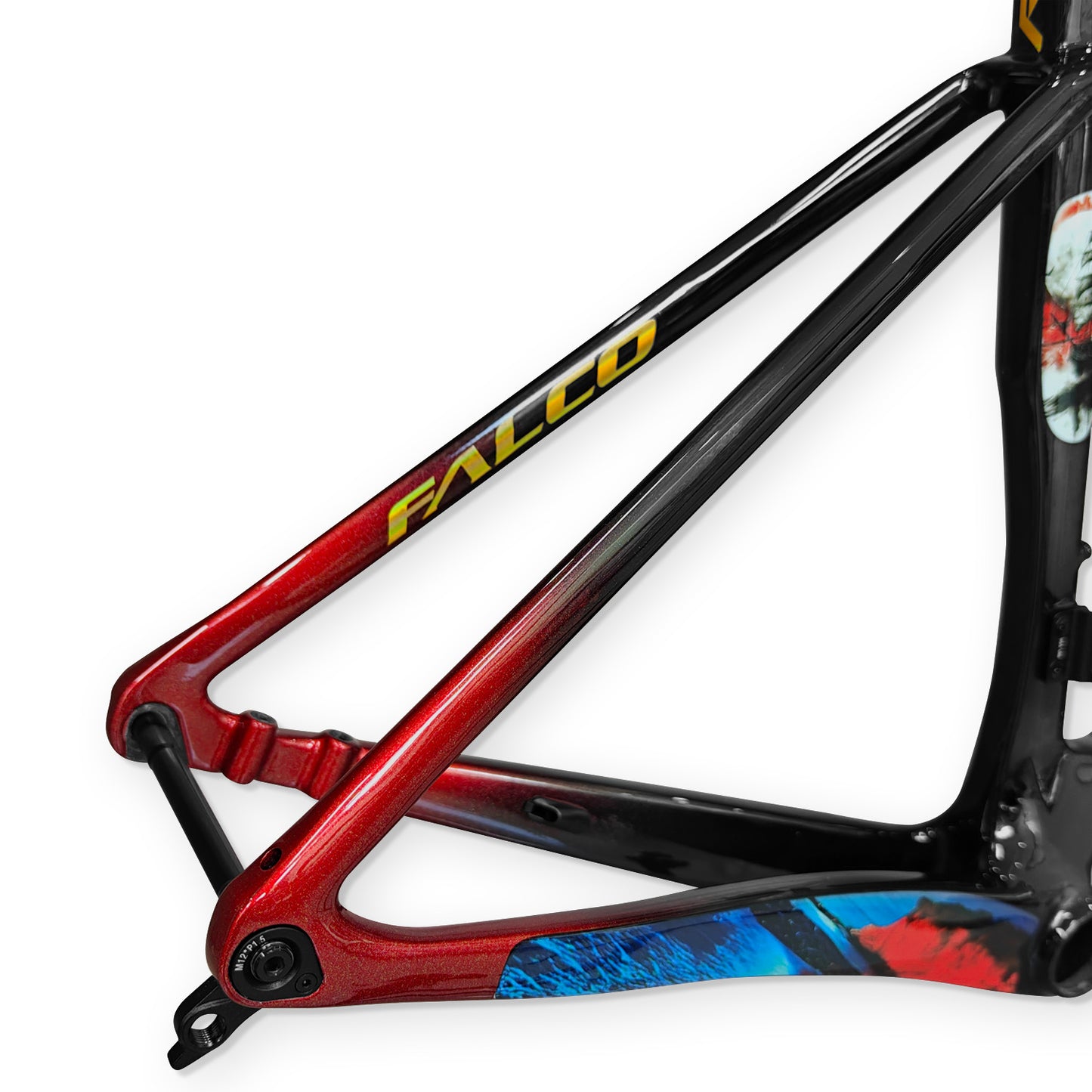

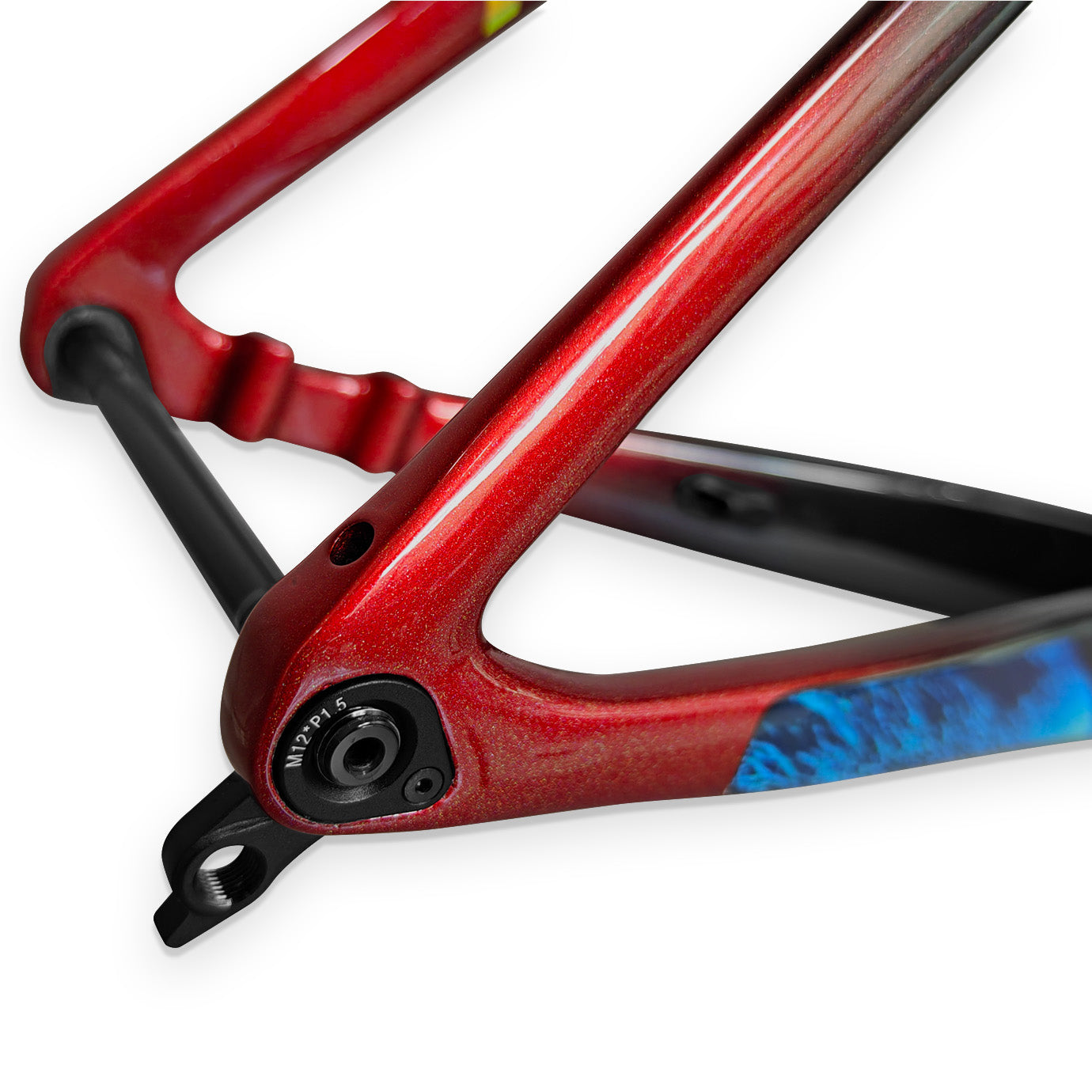

Rear Dropout: 12*142 Thru Axle

Rear derailleur hanger: UDH

Headtube: 1-1/2 to 1-1/8” tape

Fork: Aero Disc Brake Fork,12*100 Thru Axle,

Tapered Steerer Tube: 1 1/8" Top, 1 1/2" Crown

Fork Offset: 45˚

Brake: Flat Mount Disc Brake,

Disc Rotor:Front 160mm,Rear 140mm

Max Tire Width: 28mm

Cable: Internal cable

Frame Weight:

820g (49cm) +/-40g

Fork Weight: 350+/-10g

Handlebar Weight: 325+/-10g

Accessories: Handlebar Spacers 5mm: 1PC, 10mm: 1PC, 20mm: 1PCS,

 Computer holder 1pcs; Front Axle 1PC, Rear Axle 1PC;

Limited Rider Weight: 110KG

Warranty: 5 Years
